Brand: QNAP

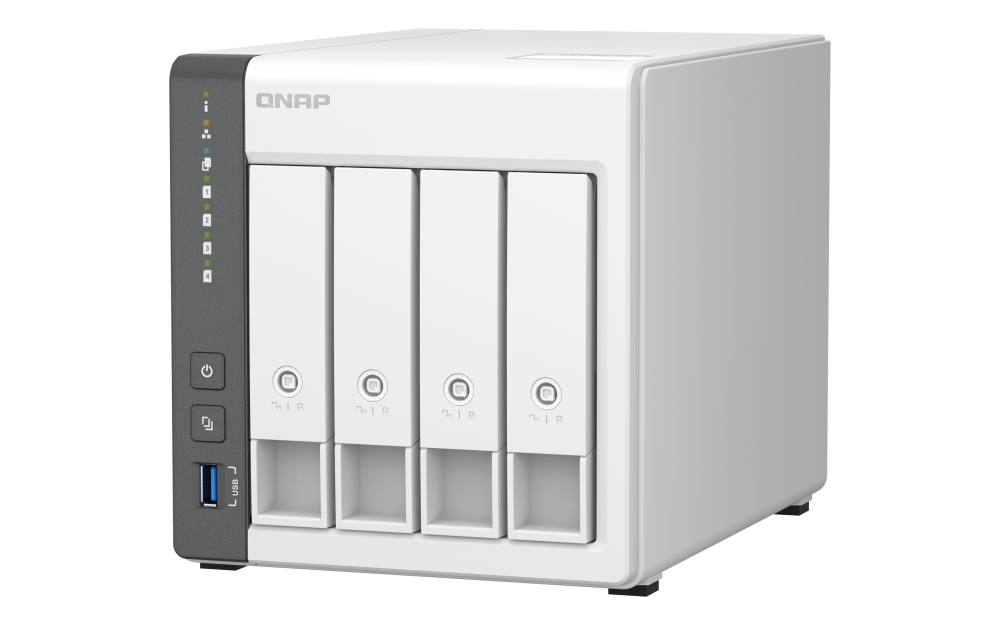

TS-433-4G
SKU: QNP-TS433
Categories: Computer Components, Network Attached Storage (NAS)
Tags: QNAP, network attached storage, data backup, TS-433 4 bay NAS, business server
CPU ARM 4-core Cortex-A55 2.0GHz processor
CPU Architecture 64-bit ARM
Graphic Processors Mali-G52
Floating Point Unit
Encryption Engine
Hardware-accelerated Transcoding
Neural Processing Unit (NPU)
System Memory 4 GB on board (non-expandable)
Note: Reserves some RAM for use as shared graphics memory.
Maximum Memory 4 GB on board (non-expandable)
Flash Memory 4 GB (Dual boot OS protection)
Drive Bay 4x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Gigabit Ethernet Port (RJ45) 1
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 1 (2.5G/1G/100M)
Wake on LAN (WOL)
Jumbo Frame
USB 2.0 port 2
USB 3.2 Gen 1 port 1
Form Factor Tower
LED Indicators System Status, LAN, USB, HDD1~4
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 165 × 160.2 × 220.5 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 2.07 kg
Weight (Gross) 3.39 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Minimum 65W adapter (12VDC), 100-240VAC
Power Consumption: Disk Standby Mode 8.45 W
Power Consumption: Operating Mode, Typical 22.54 W
Tested with drives fully populated.
Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot
Standard Warranty 2
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 200
